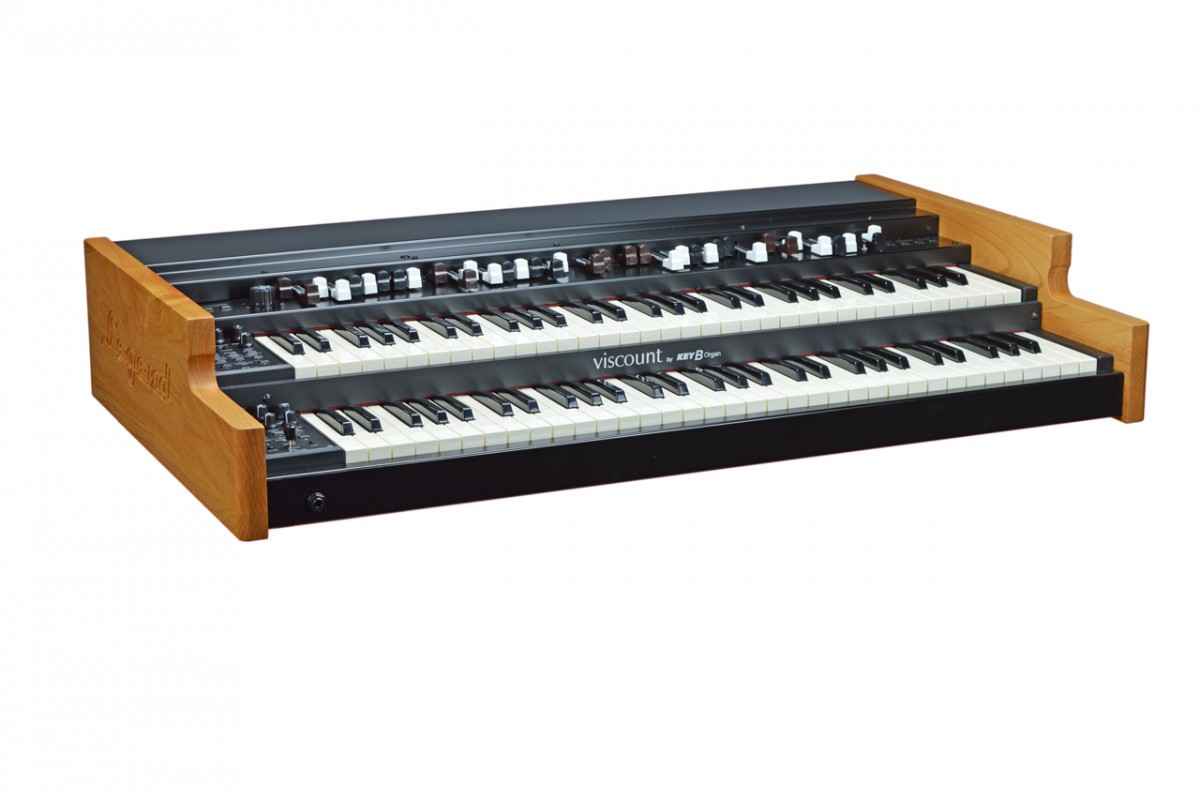

Viscount KeyB Legend Live

__TASTIERA

Tastiera Upper Keyboard 61 waterfall keyboard
Lower Keyboard 61 waterfall keyboard
_____GENERATORE_SONORO

Tecnologia TMT (Tonewheel Modeling Technology)
Crosstalk Unique crosstalk created for each tonewheel model
Keyclick A new revolutionary state of the art design
Traspositore -5 +6 semitones
Accordatura +/- ¼ tone
Tonewheel model '30, '50, '70
String Bass On/Off, Decay Control
Harmonic Percussion On/Off, Volume Soft/Normal, Decay, Fast/Slow, Harmonic Percurssion 2nd / 3rd Percussion Level and Percussion Decay Controls
_____EFFETTI

Effetti Riverberanti Newly modeled Spring and Hall reverbs (with Rotary simulation placement of reverb), Classic, Rock
Overdrive Classic, Rock
Effetti Modulanti Vibrato/Chorus: Upper On/Off, Lower & Pedal On/Off, Select: V-1, V-2, V-3, C-1, C-2, C-3
Rotary simulation type Direct, Classic, Rock
_____INTERFACCIA

Controlli Keyclick; Tuning; Crosstalk; Rotary; Transpose; Upper preset (1/2); Drawbars set (A/B/MUTE)
Lower Front Panel: Tone controls; Pedal Sustain, Percussion Decay; Percussion Volume; Pedals to lower; Lower presets (1/2); Drawbars set; (A/B/MUTE); Brake (slow/fast).
Drawbars - Upper 2 sets of nine drawbars: 16' - 5 (1/3)' - 8' - 4' - 2 (2/3)' - 2' - 1 (3/5)' - 1 (1/3)' - 1'
Drawbars - Lower 2 sets of nine drawbars: 16' - 5 (1/3)' - 8' - 4' - 2 (2/3)' - 2' - 1 (3/5)' - 1 (1/3)' - 1'
Drawbars - Upper Preset Upper Drawbar Set A or Set B + 9 presets and Upper MIDI Local on/off
Drawbars - Lower Preset Lower Drawbar Set A or Set B + 9 presets and Lower MIDI Local on/off
Drawbars - Pedals 2 drawbars: 16' & 8'
Connessioni OUTPUT: L & R Line Out 6.35 mm jacks; Pedals Direct Out 6,35 mm jack (without C/V and Rotary emulation); 11 pin Rotary Speaker (without Rotary emulation); 2 Stereo headphone 6,35 mm jacks; TRS Digital Expression Pedal 6,35 mm jack; Rotary emulation Footswitch 6,35 mm jack; USB HOST type A (Power charger only); FX send.

INPUT: Audio input mono with adjusting gain pot; FX return.
Midi In, Out, Thru Out 1, Out 2, In, Thru, Pedalboard In
_____ALTRO

Accessori Opzionali Pedalboard 18 notes; Expression Pedal; Bench; Stand; Softbag;
Dimensioni senza Pedaliera (LxHxP) 101 x 18 x 59 cm / 40.16' x 7.4' x 23,2'
Peso 18 kg / 39.68 lbs
