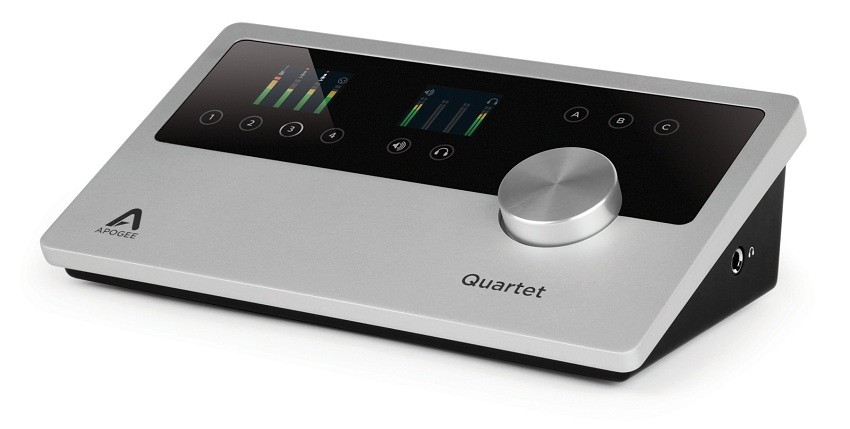

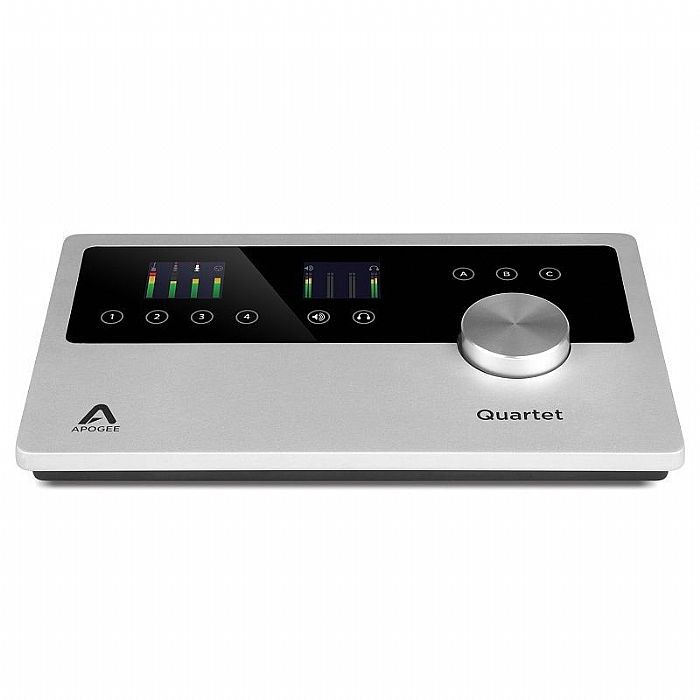

Quartet di Apogee è un’interfaccia audio USB professionale, progettata per offrire a ogni studio Mac-based il sistema di registrazione da scrivania definitivo. Dotata di 4 ingressi e 8 uscite audio equipaggiati con la tecnologia di conversione AD/DA proprietaria di Apogee leader del mercato, oltre a 4 mic preamp professionali, Quartet si colloca tra i 2 canali messi a disposizione da Apogee Duet e gli 8 canali di Apogee Ensemble. Apogee è una delle aziende leader del mercato nella tecnologia per la registrazione audio digitale professionale. Utilizzati dai professionisti della registrazione di tutto il mondo, i prodotti Apogee come Duet, Ensemble e Symphony I/O sono stati utilizzati per la realizzazione d’innumerevoli composizioni vincitrici di premi Oscar e GRAMMY, fissando lo standard qualitativo nella registrazione professionale.

Apogee Quartet PCI Boards
System Requirements
Mac OS:
Computer: Intel Mac 1.5GHz or faster
Memory: 2 GB RAM minimum, 4 GB recommended
OS: 10.6.8, 10.7.5 or greater
Connection and power: Any available USB port on a Mac
Power: DC Power supply included


Windows:
OS: Windows 10 Enterprise, Pro or Home Editions (64-bit)
– Anniversary Update or greater
Driver: Apogee Maestro & Apogee USB ASIO driver
Computer: Windows PC with Intel Core i3 processor or greater
Memory: 4 GB RAM minimum, 8 GB Recommended
Connection: USB port on computer
Power: External power supply (included)


iOS:
iOS version: 6 or greater
Connection: Lightning connector
DC Power supply included
iOS device compatibility:
iPhone 7 Plus, iPhone 7,
iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5,
iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad Air 2, iPad Air, iPad (4th generation), iPad mini 4, iPad mini 3, iPad mini 2, iPad mini, iPad (4th generation), iPod touch (6th generation), iPad touch (5th generation)
made-for-ipod-iphone-ipad-logo

Compatible Software:
Mac
Any Mac Core Audio compatible application or DAW
Recommended apps: Logic, GarageBand, MainStage, Final Cut, Pro Tools, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo
Windows
Any ASIO compatible application or DAW
Recommended apps: Ableton Live, Pro Tools, Studio One, Cubase
iOS
Any iOS Core Audio compatible app.
Recommended apps: GarageBand, Music Memos, Auria
In the box:
Quartet
USB Cable (Lightning and 30-pin cables sold separately)
Universal Power Supply with standard 3 pin-IEC cable
QuickStart Guide
Instructions for download of software and complete documentation
Features:
USB 2.0 High-speed Mac audio interface
A/D and D/A conversion: 24 bit/192kHz
4 Analog Inputs:
Combination line (balanced +20dBu max)
Mic/Instrument (+20dBu/+14dBu max)
4 Microphone preamps with up to 75dB of gain
Selectable 48v phantom power, Soft Limit and phase invert
Digital Inputs:
ADAT/SMUX Input, 8 channels, 2 Toslink connectors, 44.1kHz to 96kHz
MIDI input (USB-A type connector)
8 Analog Outputs:
6 Balanced line outputs, +20 dBu maximum output level
1 Independent 1/4” stereo headphone output
Digital Outputs:
MIDI output (USB-A type connector)
Word clock output on BNC connector
2 top panel high-resolution OLED displays
Controller knob
6 touchpads for direct selection of inputs and outputs
3 assignable touchpads to control:
Mute Outputs
Dim Outputs
Sum to Mono
Clear Meters
Engage Speaker Set (allows monitoring of up to 3 pairs of speakers)
Low latency monitoring, complete input/output control with Apogee’s Maestro software
Legendary Apogee sound quality
Designed in California – Made in the U.S.A.
Mic Pre:
EIN: 128dB (un-weighted) @ 60dB, 150Ohm input
Max input level: +20dBu
Input impedance: 3KOhm
Hi-Z:
Max input level 14 dBu
Input impedance: >2MOhm
A/D conversion:
Max input level (+4dBu ref): +20dBu
Max input level (-10dBV ref): +6dBV
Input impedance: 5KOhm
Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
Rel. THD + N: -106dB (@ 96Khz)
Dyn. Range: 114dB (A-weighted)
D/A conversion:
Max output level (+4dBu ref): +20dBu
Max output level (-10dBV ref): +6dBV
Line output impedance: 90 Ohm
Max output level headphones: 19dBu
HPH output impedance 30 Ohm.
Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
Rel. THD+N : -113dB (@96Khz)
Dyn Range: 123dB (A-weighted)
