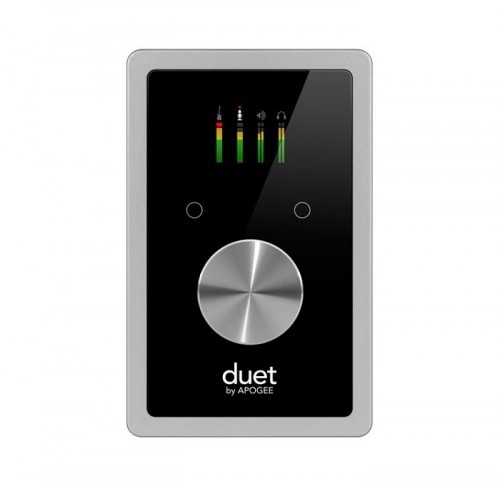

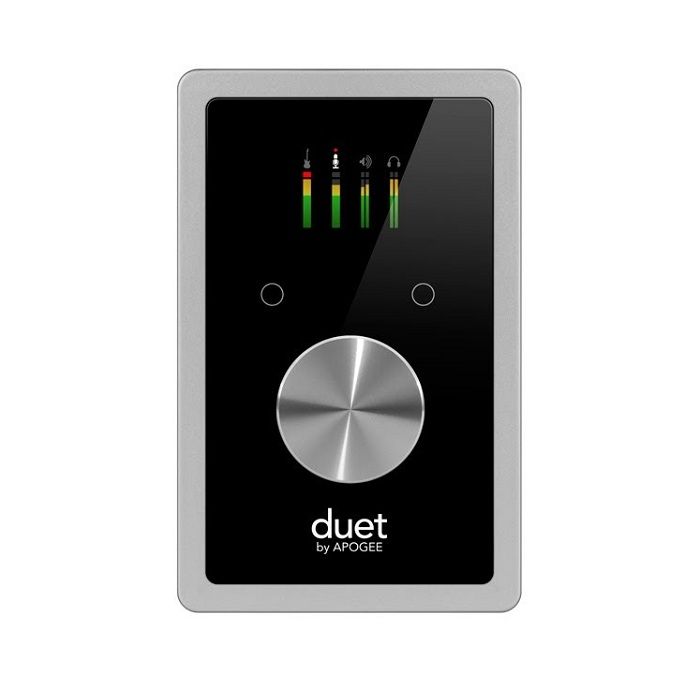

Apogee Duet è l'interfaccia audio portatile più apprezzata dai professionisti, e non solo. Oltre ad aver ricevuto diversi premi per l’elevata qualità costruttiva, sonora ed il design, Duet è stata utilizzata per la creazione di numerosi dischi vincitori di Grammy. La nuova versione Duet per iPad/Mac è inoltre compatibile con iPod touch, iPhone e iPad, in questo modo sarà possibile beneficiare della leggendaria qualità di conversione Apogee e di preamplificatori di prima classe, anche su dispositivi iOS.

System Requirements
Mac OS:
Computer: Intel Mac 1.5GHz or faster
Memory: 2 GB RAM minimum, 4 GB recommended
OS: 10.6.8, 10.7.5 or greater
Connection and power: Any available USB port on a Mac
(USB bus powered; DC power optional)



iOS:
iOS version: 6 or greater
Connection: 30-pin or Lightning connector (sold separately)
DC power required (DC power supply included)
iOS device compatibility:
iPhone 7 Plus, iPhone 7,
iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5,
iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad Air 2, iPad Air, iPad (4th generation), iPad mini 4, iPad mini 3, iPad mini 2, iPad mini, iPad (4th generation), iPod touch (6th generation), iPad touch (5th generation)
made-for-ipod-iphone-ipad-logo

Compatible Software:
Mac
Any Mac Core Audio compatible application
Recommended apps: Logic, GarageBand, MainStage, Final Cut, Pro Tools, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo

Recommended apps: Ableton Live, Pro Tools, Studio One, Cubase
iOS
Any iOS Core Audio compatible application
Recommended apps: GarageBand, Music Memos, Auria
In the box:
Duet
Breakout Cable with:
2 Combination Line/Mic/Instrument Inputs
2 Balanced Line Outputs
USB Cable (Lightning and 30-pin cables sold separately)
Universal Power Adapter for US, UK and EU
Quick Start Guide
Features:
USB 2.0 audio interface for Mac, PC or iOS
2 analog inputs:
Combination Line (balanced +20dBu max)
Mic/Instrument (+20dBu/+14dBu max)
2 Microphone preamps with up to 75dB of gain
Selectable 48v phantom power, Soft Limit and phase invert
4 analog outputs:
2 Balanced line outputs, +20 dBu maximum output level
1 Independent 1/4” stereo headphone output
A/D and D/A conversion at 24-bit/192kHz
MIDI connection (Core MIDI compatible; USB-A type connector)
Controller knob selects function, sets input and output level
Top panel high resolution OLED display
Two assignable top panel touch pads to control:
Mute speakers, headphones or all outputs
Dim speakers, headphones or all outputs
Sum to mono speakers, headphones or all outputs
Assign headphones to outputs 1-2, 3-4 or low latency mixer
Clear Meters
Apogee’s Maestro app (included in Mac and PC installer) for advanced control
Available for free from the App store, if connecting to iOS (cable sold separately)
Legendary Apogee sound quality
Designed in California – Made in the U.S.A.
Mic Pre:
EIN: 128dB (un-weighted) @ 60dB, 150Ohm input
Max input level: +20dBu
Input impedance: 3KOhm
Hi-Z:
Max input level 14 dBu
Input impedance: >2MOhm
A/D conversion:
Max input level (+4dBu ref): +20dBu
Max input level (-10dBV ref): +6dBV
Input impedance: 5KOhm
Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
Rel. THD + N: -106dB (@ 96Khz)
Dyn. Range: 114dB (A-weighted)
D/A conversion:
Max output level (+4dBu ref): +20dBu
Max output level (-10dBV ref): +6dBV
Line output impedance: 90 Ohm
Max output level headphones: 19dBu
HPH output impedance 30 Ohm.
Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
Rel. THD+N : -113dB (@96Khz)
Dyn Range: 123dB (A-weighted)
